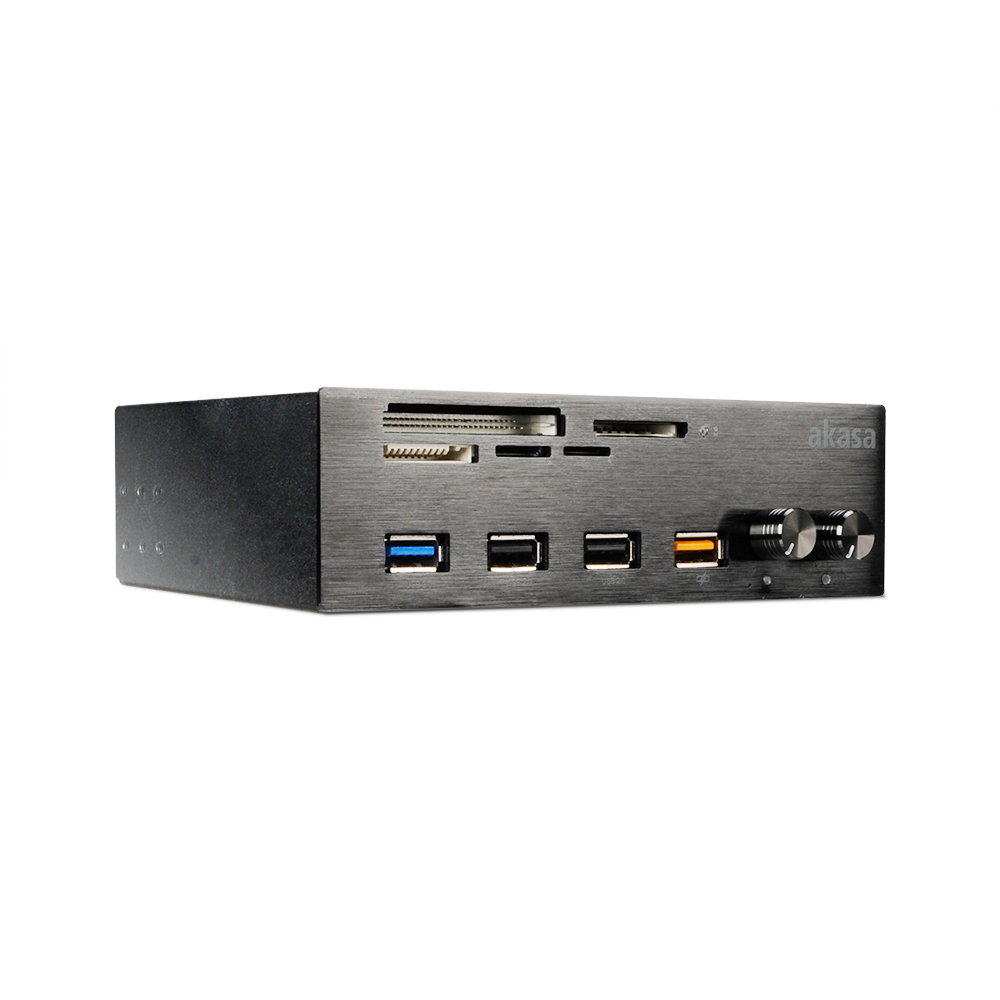

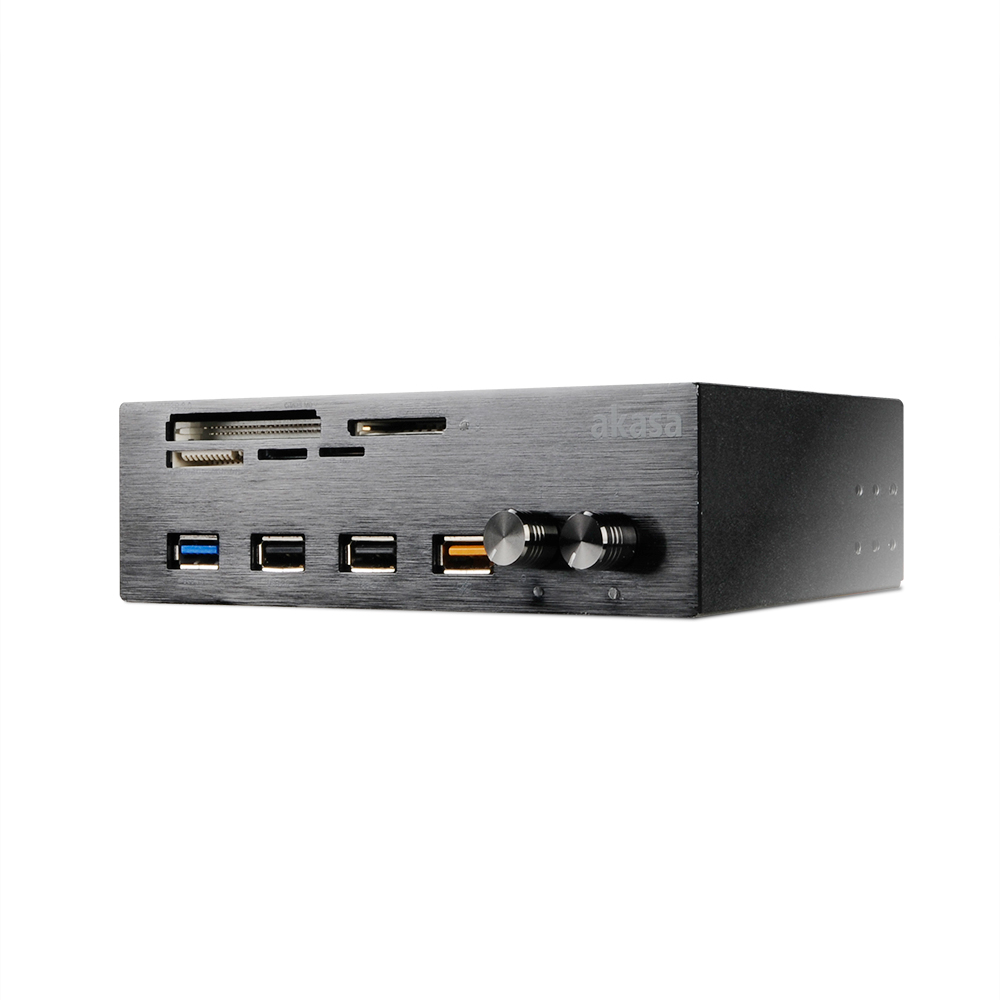

InterConnect EF
USB 3.0 card reader and HUB with fan controller

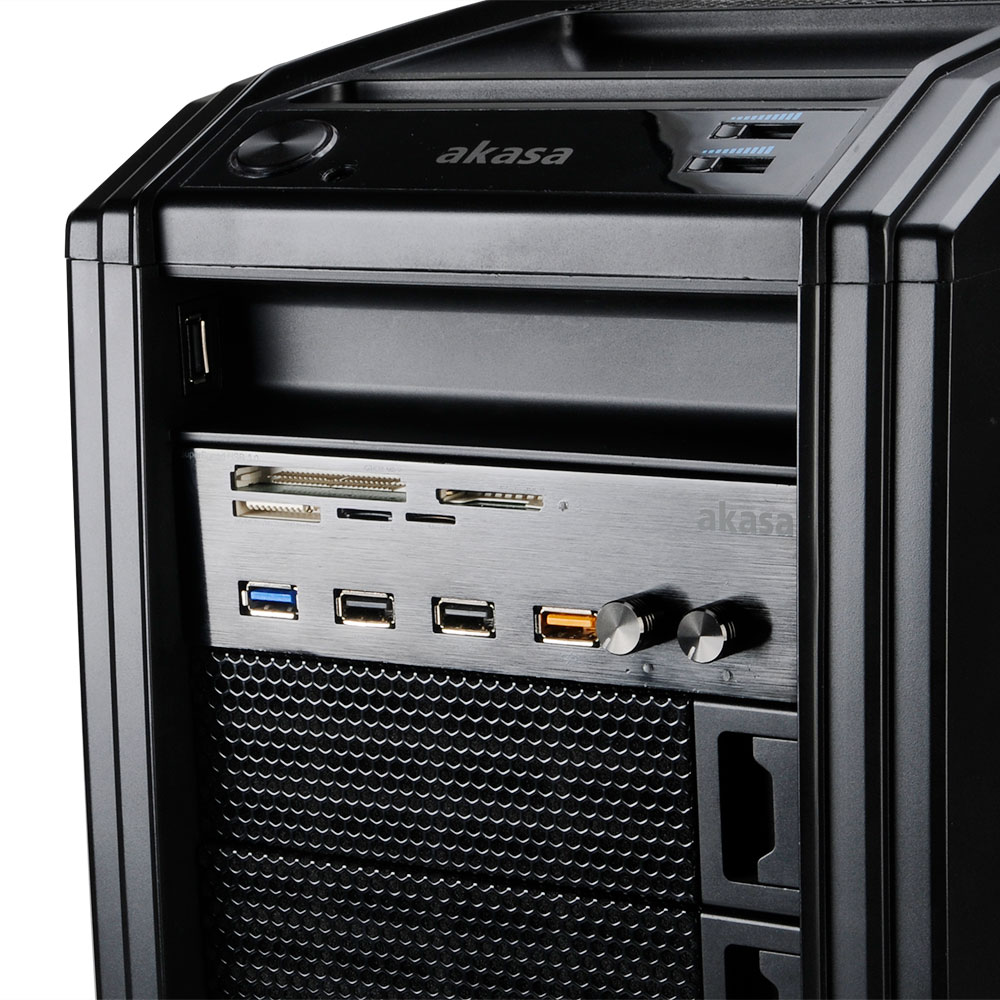

Conveniently positioned at the front of your PC, this five slot media card reader accepts most available cards in a single location. USB 3.0 port and USB 2.0 port gathers all USB data connections in one easy accessible place. Charging ports provide up to 2.4A for smart phone or tablet fast charging.
• Brushed aluminum fascia panel
• 5-slot USB 3.0 card reader
• 20W available for each fan control channel
• Two channels fan controller
• 3pin / 4pin PWM fan connector compatible
• USB charging port provide up to 2.4A
• Charging port support smart phone or tablet fast charging
• High performance USB fast charging controller provide auto detect and charging
• Meet USB battery charging specification
| Application | 5.25" PC bay |
|---|---|
| Function | USB 3.0 port x 1 USB 2.0 port x 2 card reader slot x 5 charging port x 1 fan controller x 2 |
| Memory card types | Compact Flash (CF I, CF II, Ultra, Extreme, I-Pro, Ultimate, MD) Memory Stick (MS Pro, MS Pro Duo, Magic Gate, Extreme, Ultra) Secure Digital (SDXC, SDHC, SD, Ultra, Extreme, Elite Pro, High Speed, MMC, MMC Mobile) • 1TB for SDXC • 32GByte for SDHC M2 (Memory Stick Micro M2) microSD (microSDHC, micro SDXC, High Capacity) |
| Rear connectors | internal motherboard USB 3.0 connector internal motherboard USB 2.0 connector 4-Pin PSU molex connector SATA power connector fan connector |
| Max data transfer rate | 5Gb/s (USB 3.0) and 480Mb/s (USB 2.0) |
| Power requirement | DC 5V |
| Supported OS | Windows XP / Vista / 7 / 8.X / 10 / 11 |
| Product Code | AK-HC-08BK |
