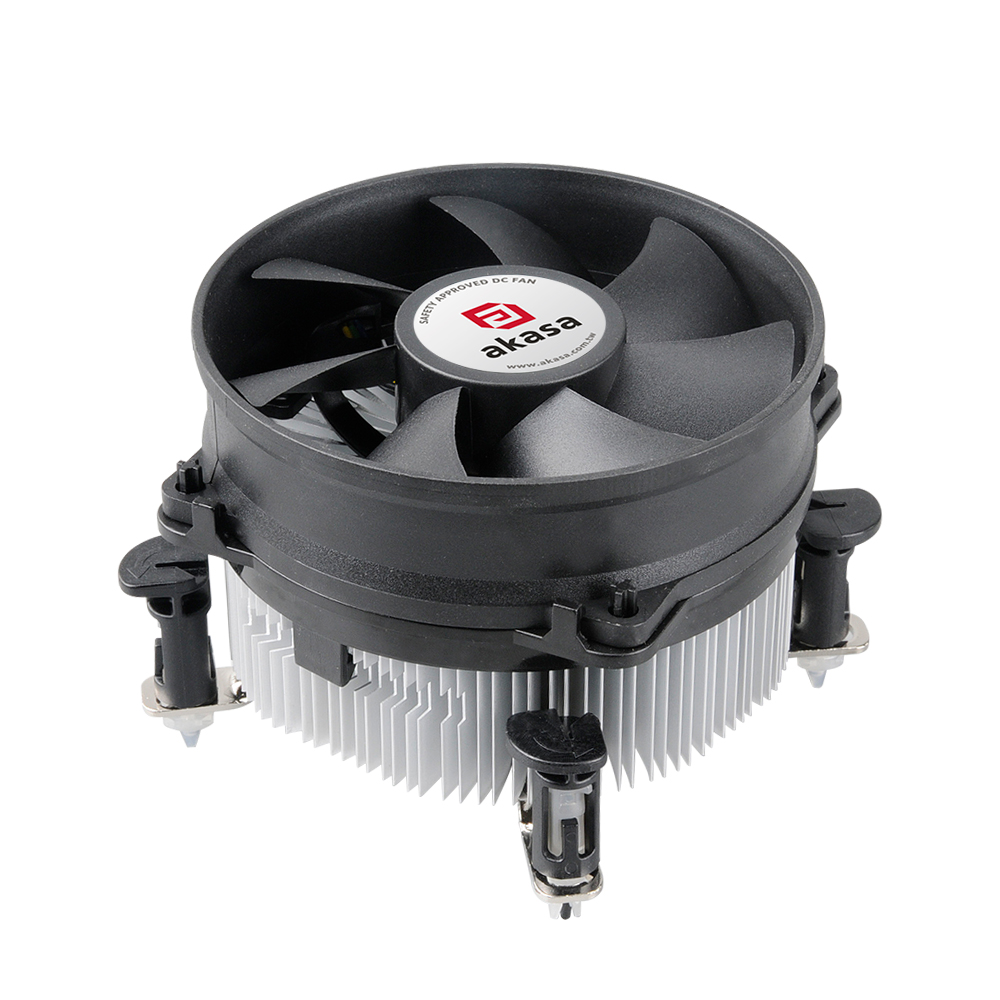

CPU Cooler (63mm), 92mm Fan, Push-Pins, TDP 95W, Intel
Ultra quiet PWM fan and multi directional aluminium heatsink for cost effective performance cooler. Ball bearing 9cm fan and reliable dual socket push-pins mounting. Up to 95W.
The Ultra Quiet AK-CCE-7101CP uses a high engineering omni directional heatsink providing efficient CPU and motherboard zone cooling. The fan uses Intel approved power management (PWM) where speed is regulated automatically by CPU usage. Under normal conditions the CPU fan speed is low ensuring low noise computing.
Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA115X platforms without any mounting adjustment, pushpins will automatically slide into correct position.
AK-CCE-7101CP is designed to work with CPU’s up to 95W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.

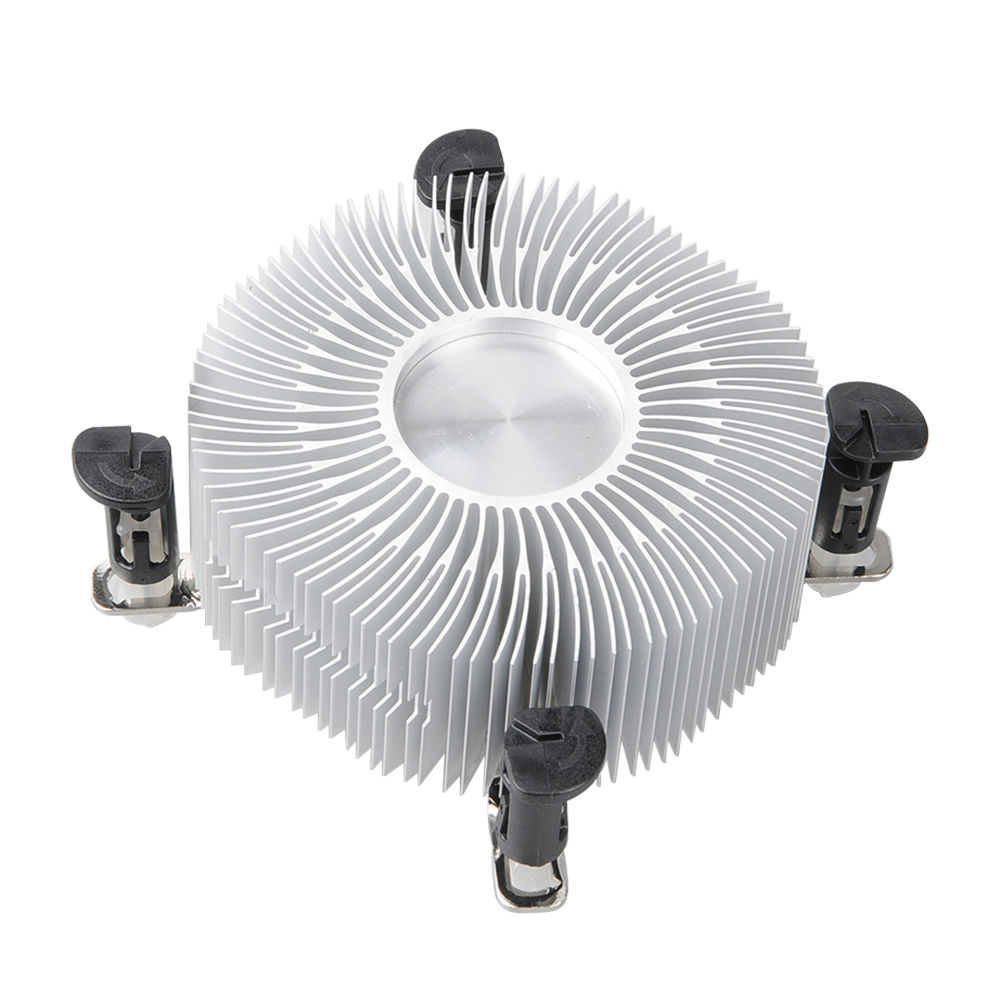

• High engineered aluminium heatsink for cost effective performance
• Bi-ped fins maximise heat dissipation

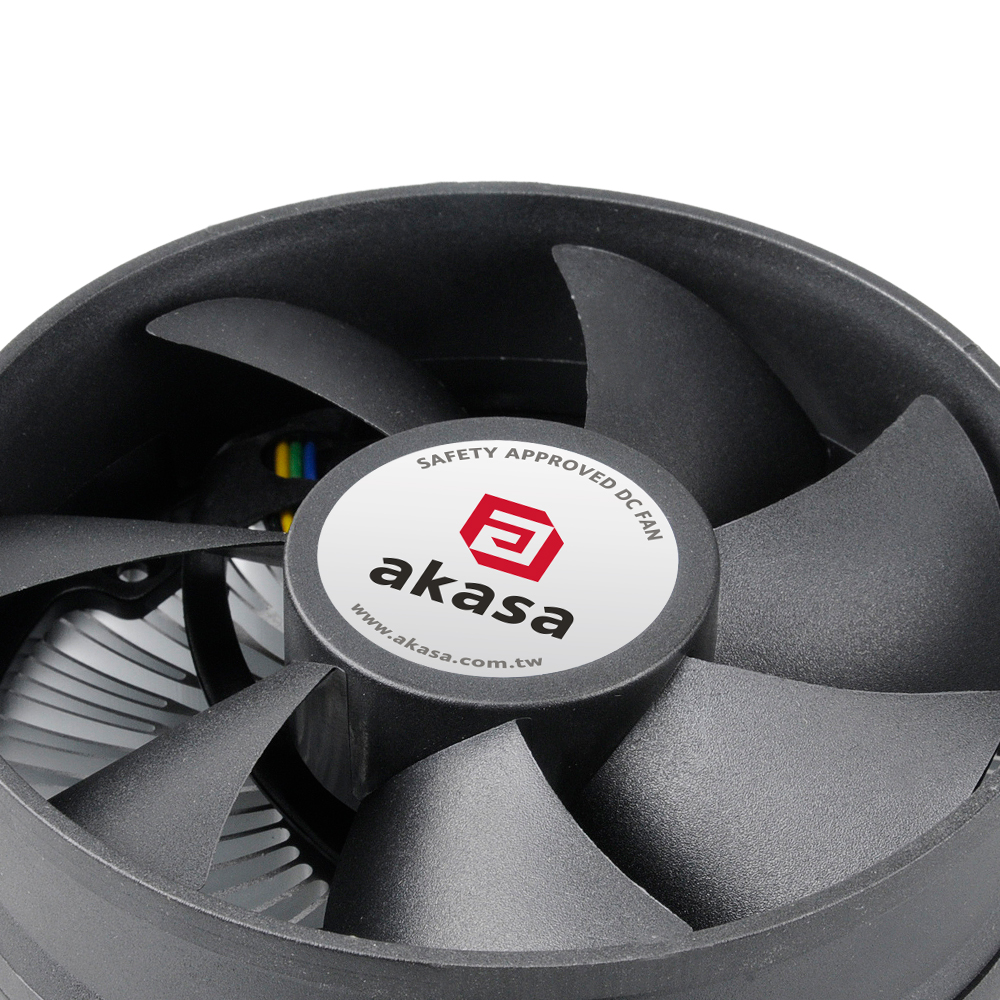

• Ultra Quiet ball bearing PWM fan

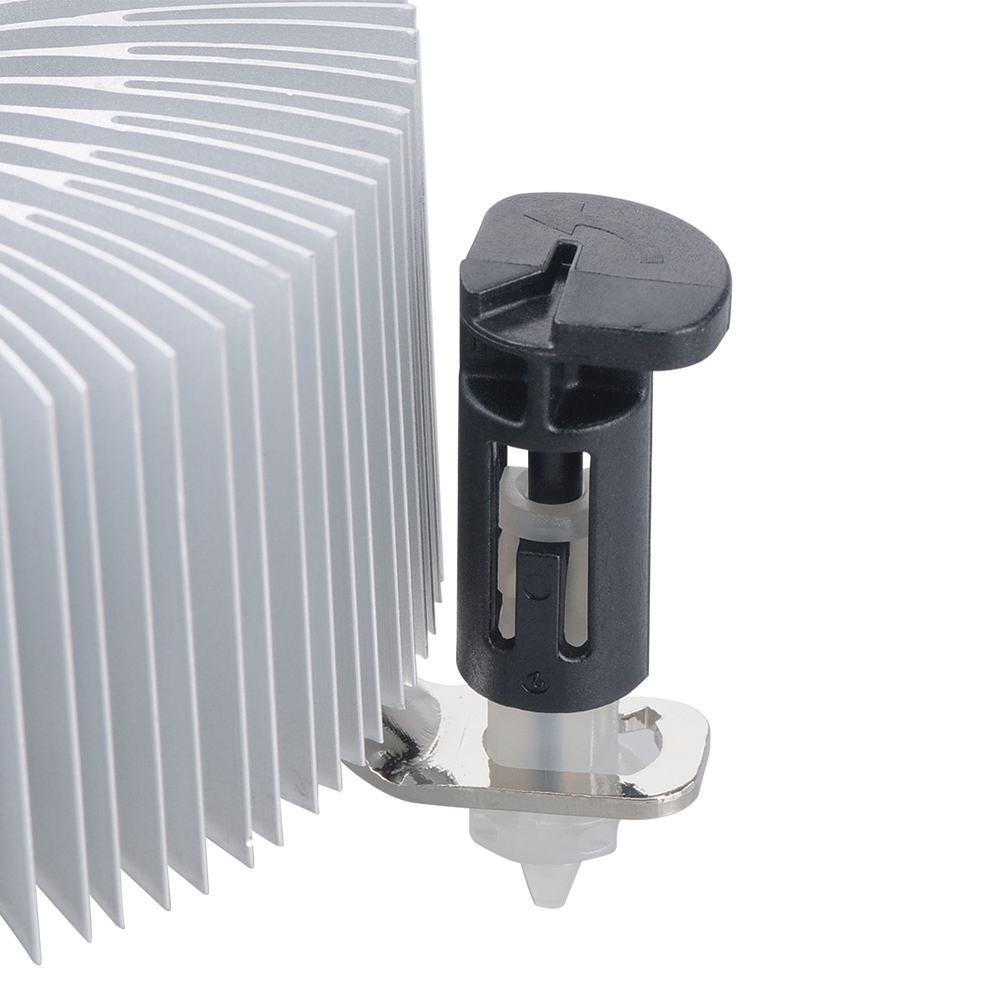

• Push-pin mounting provide easy and reliable retention
• Intel LGA775, LGA115X and LGA1200 compatible

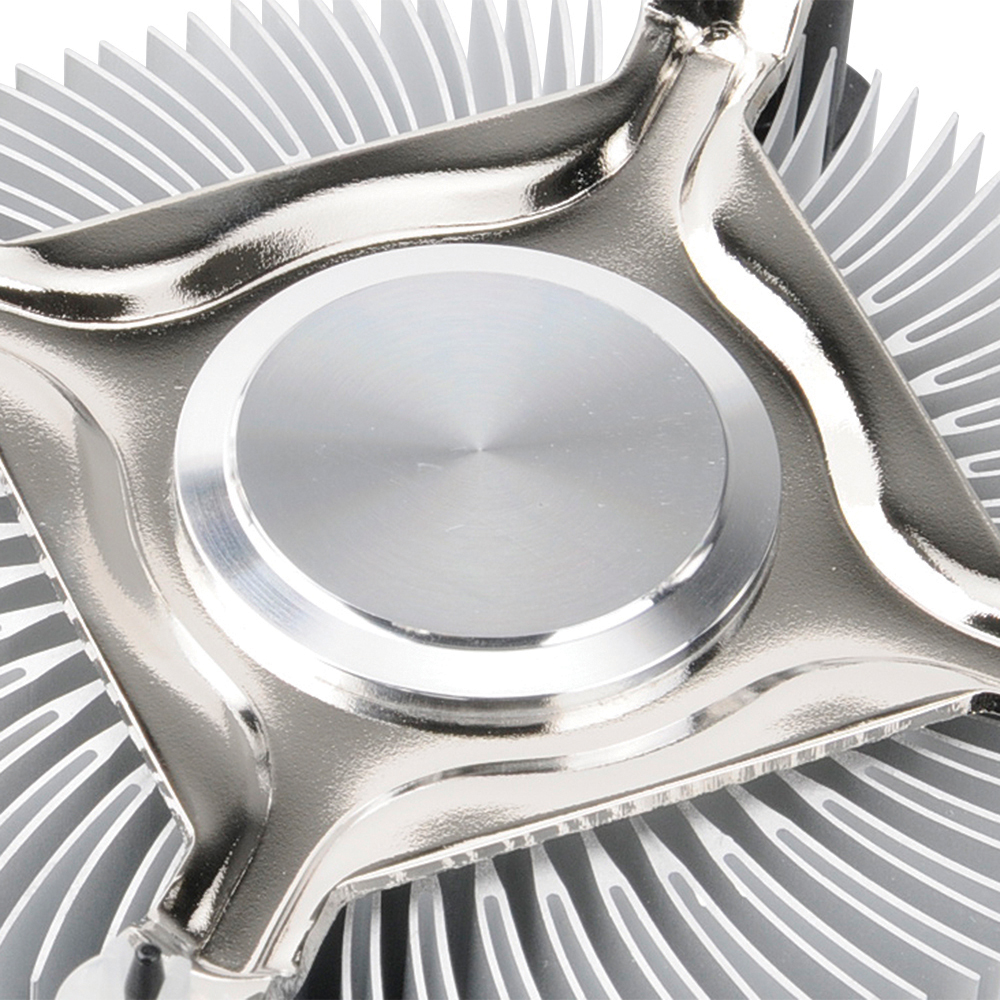

• Performance thermal interface pre-applied
| Socket Type | Intel LGA775 , LGA1150, LGA1151, LGA1155, LGA1156, LGA1200 |
|---|---|
| Suggested TDP (W) | 95 |
| Cooler Dimensions | 95 x 95 x 63 mm |
| Heatsink Material | Aluminium fins and core |
| Installation | Push-pins |
| Weight | 362g |
| Product Code | AK-CCE-7101CP |
| Dimensions | ∅92 x 25 mm |
|---|---|
| Bearing | Ball Bearing |
| Fan Speed | 600 - 3000 RPM |
| Max Airflow | 55.4 CFM |
| Max Air Pressure | 4.30 mm-H2O |
| Noise Level | 11.73 - 28.8 dB(A) |
| Fan Rated Current | 0.26A |
| Fan Rated Voltage | DC 12V |
| Connector | 4-pin PWM |
| Fan Life Expectancy | 40,000 hours |
| Warranty | 2 years |
