Affinity TB3
Thunderbolt™ 3 Dock
Dual 4K Thunderbolt™ 3 dock with power delivery. Turn your mobile workstation into a desktop powerhouse.
Product Code: A-NDK02-12BK
Affinity TB3
Thunderbolt™ 3 Dock
Dual 4K Thunderbolt™ 3 dock with power delivery. Turn your mobile workstation into a desktop powerhouse.
|
Thunderbolt™ 3 docking station
Merging connectivity and performance Endless connectivity possibilities
One connection - Thunderbolt™ 3 connection provides audio, video, data, and power
delivery All connections covered, no need for conversion - Network, HDMI, VGA, 2 DisplayPort,
2 USB. Easily transmit and output data to any external display. Connect Dual 4K or Single 5K displays
Perfect for creative professionals such as video editors, graphic and web designers, engineers, architects, and more Charge your Thunderbolt™ 3
workstation with up to 87W of power delivery Fast Just Got Faster!
Utilise the ultra fast speeds of Thunderbolt™ 3 of up to 40Gbps. With transfer speeds
twice as fast as Thunderbolt™ 2 and eight times faster than USB 3.1 Gen1 - the Affinity TB3 delivers the fastest connection to your downstream display or device. One dock to rule them all
Connect all your peripherals to the Affinity TB3 dock using a single Thunderbolt™ 3 USB Type-C connection Wide workstation compatibility
Connect with the latest Thunderbolt™ 3 Mac and Windows computers |
| Application | Thunderbolt™ 3 Dock |
|---|---|

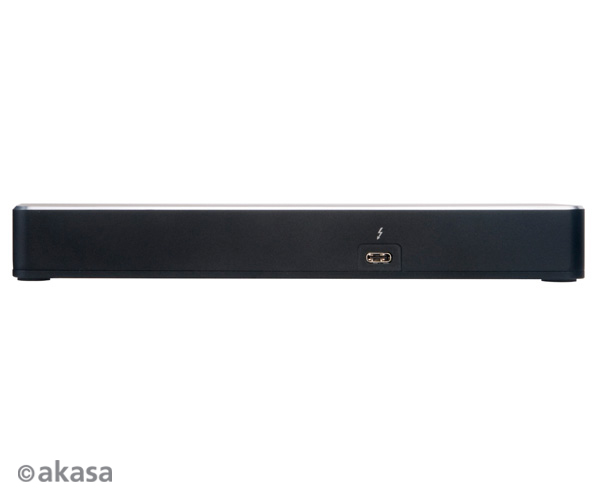

| Upstream Ports | Thunderbolt™ 3 (USB Type-C, female) |

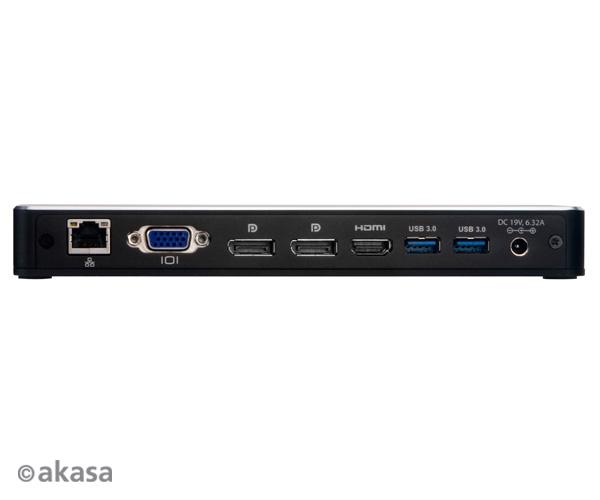

| Downstream Ports | Gigabit Ethernet x 1 VGA x 1 DisplayPort 1.2 x 2 HDMI x 1 USB 3.1 Gen1 Type-A x 2 |
| Max data transfer rate | 40 Gb/s |
| Power supply | 87W power delivery 20V x 6A AC adapter 120W |
| LAN | I210 GbE network controller |
| Dimensions | 212 x 60 x 26mm (L x W x H) |
| Thunderbolt™ 3 cable | Male to male Thunderbolt™ 3 USB Type-C |
| Thunderbolt™ 3 cable length | 500mm |
| OS Compatibility | macOS, Windows XP / 7 / 8 / 10 / 11 |
| Contents | Power adapter 120W, power cord, Thunderbolt™ 3 cable |
| Product Code | A-NDK02-12BK |
